Deploying OpsMate Platform on AWS EKS

Business Scenario

Manager:
We have successfully created the AWS EKS cluster and configured Kubernetes resources. Now it's time to deploy the complete OpsMate platform on EKS and make it available to users.

DevOps Engineer:
That's correct. We will deploy all OpsMate components, including Deployments, Services, ConfigMaps, and Secrets, into the EKS cluster and verify that they are running properly.

Manager:
How will this improve our application availability?

DevOps Engineer:
EKS will ensure high availability, automatic scaling, self-healing, and centralized management of the OpsMate platform in a production environment.

Manager:
What is our deployment plan?

DevOps Engineer:
We will apply the Kubernetes manifests, verify Pod and Service status, expose the application, and test connectivity across all components.

DevOps Engineer to Team:
Team, we will deploy the OpsMate platform on AWS EKS, validate all Pods and Services, confirm ConfigMap and Secret integration, and ensure the application is accessible and running smoothly.

Team:
Understood. We will deploy the complete OpsMate platform on AWS EKS and verify that it is scalable, secure, and fully operational for production use.

Pre-Lab Preparation

  • Create Kubernetes namespaces

  • Organize OpsMate resources

  • Deploy the OpsMate application

  • Verify Pods and Deployments

  • Expose applications using Kubernetes Services

  • Access the application from outside the cluster

Task 1: Verify EKS Cluster Connectivity

Connect to your EC2 administration server.

Verify cluster access:

kubectl cluster-info

Verify worker nodes:

kubectl get nodes

View current context:

kubectl config current-context

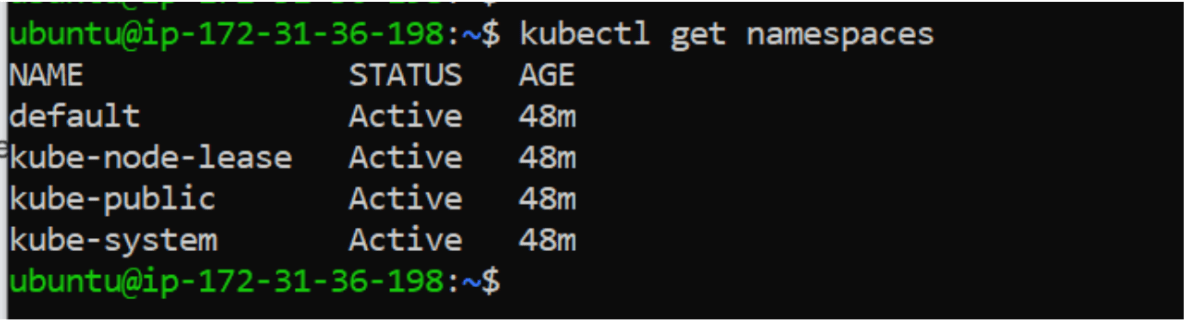

Check existing namespaces:

kubectl get namespaces

Task 2: Understand Kubernetes Namespaces

What is a Namespace?

A Namespace is a logical partition inside a Kubernetes cluster.

Instead of placing every application in the default namespace, we can organize workloads separately.

Example:

EKS Cluster

│

├── development

├── testing

├── production

└── monitoring

This helps teams manage resources more efficiently.

For the OpsMate project, we will create a dedicated namespace.

Task 3: Create OpsMate Namespace

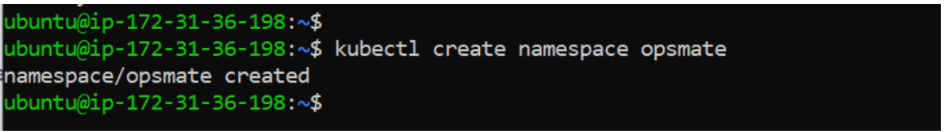

Create namespace:

kubectl create namespace opsmate

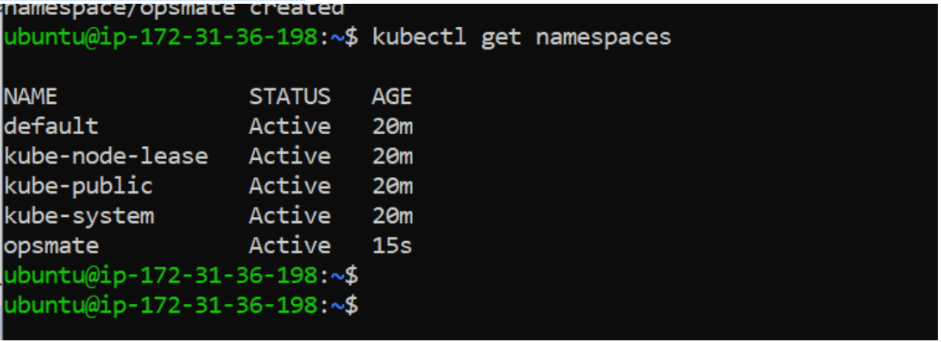

Verify namespace:

kubectl get namespaces

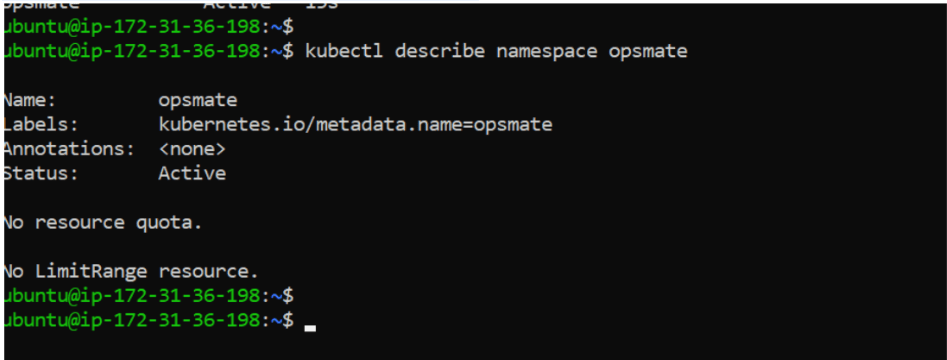

View namespace details:

kubectl describe namespace opsmate

Task 4: Set Default Namespace Context

Instead of specifying the namespace every time, configure kubectl to use the OpsMate namespace.

kubectl config set-context --current --namespace=opsmate

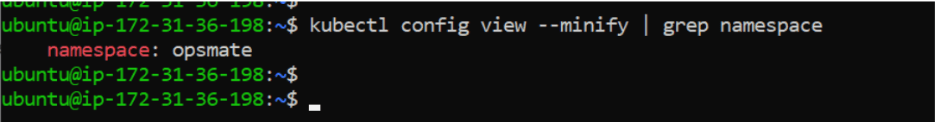

Verify:

kubectl config view --minify | grep namespace

Task 5: Create OpsMate Deployment

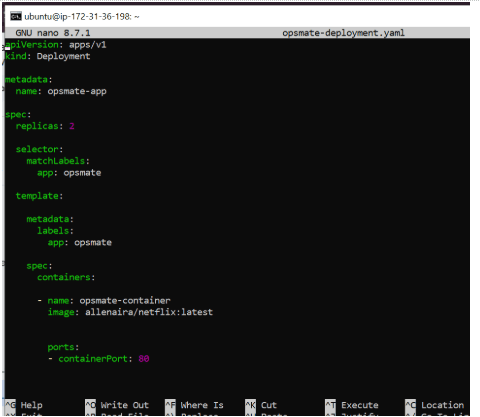

Create deployment file:

nano opsmate-deployment.yaml

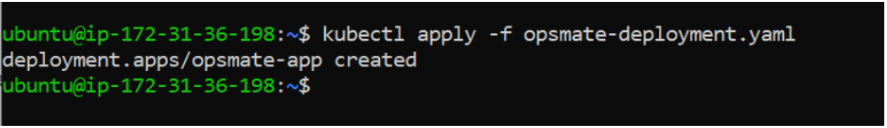

Apply deployment:

kubectl apply -f opsmate-deployment.yaml

Verify deployment:

kubectl get deployments

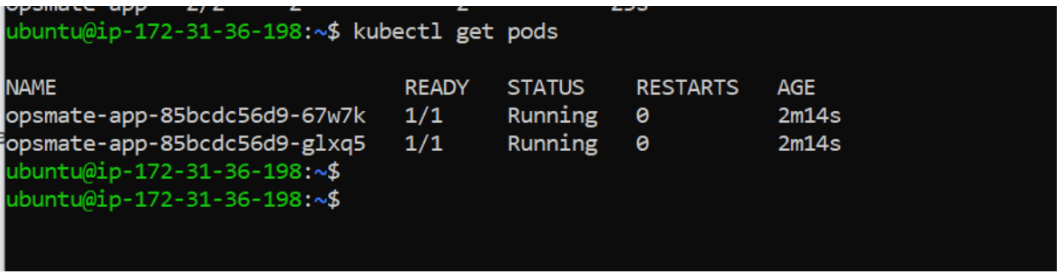

Verify Pods:

kubectl get pods

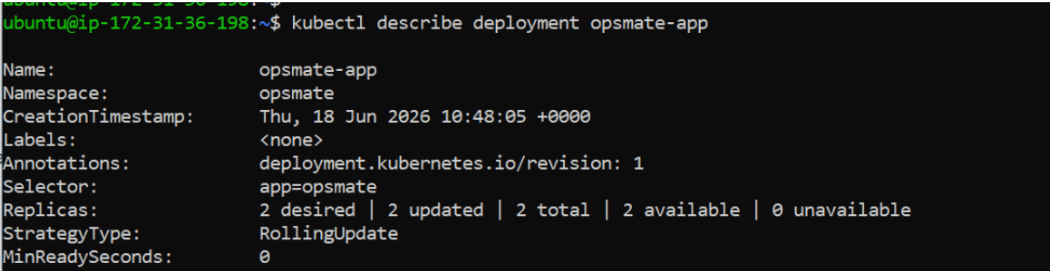

Describe deployment:

kubectl describe deployment opsmate-app

Task 6: Expose OpsMate Application

Currently Pods are running only inside the cluster.

External users cannot access them.

Create a Service.

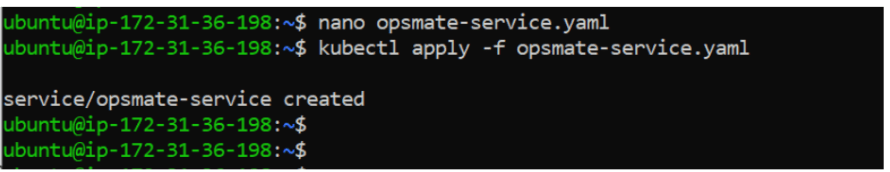

nano opsmate-service.yaml

Apply configuration:

kubectl apply -f opsmate-service.yaml

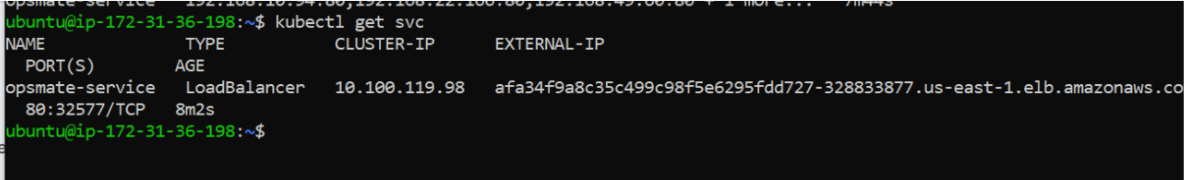

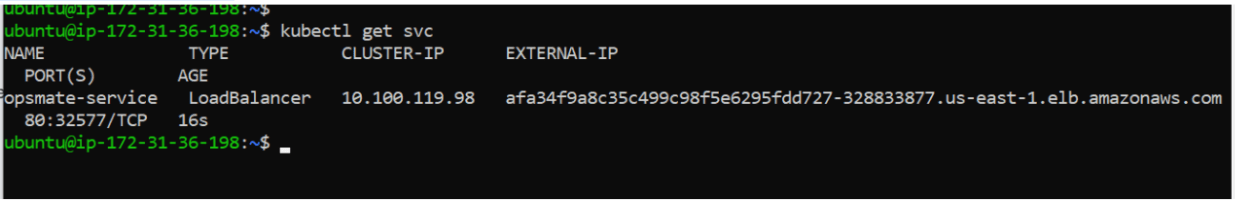

Verify Service:

kubectl get svc

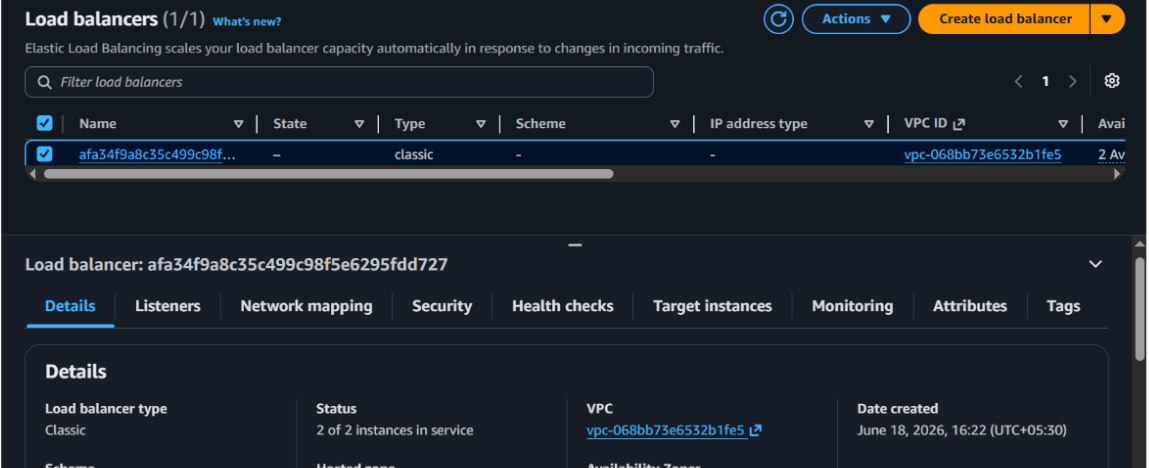

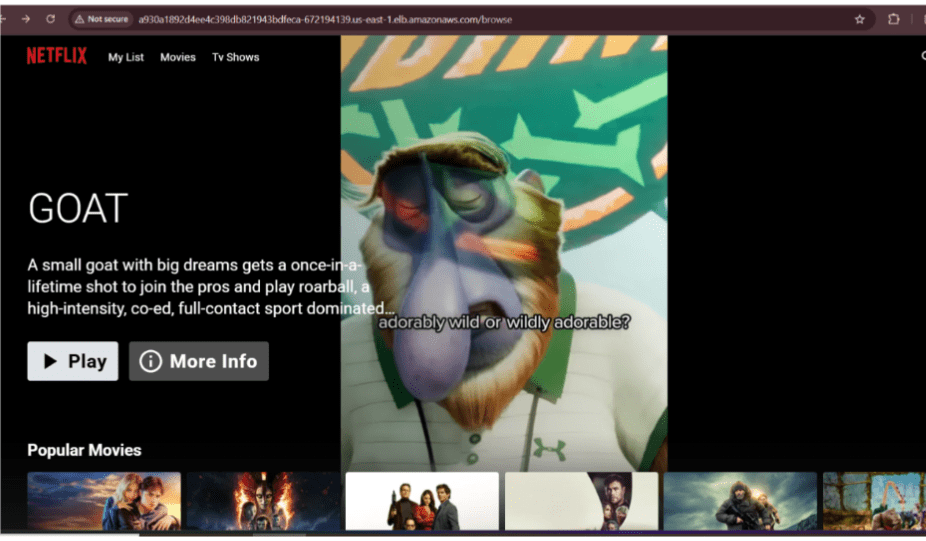

Task 8: Access the Application

Copy the external DNS name:a123456.us-east-1.elb.amazonaws.com

Task 9: Scale OpsMate Application

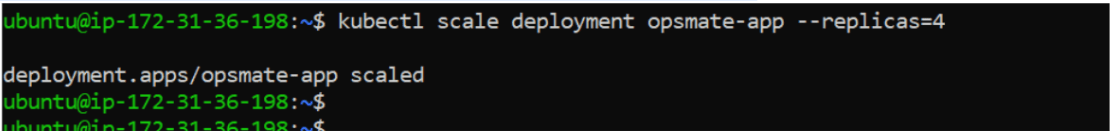

Increase replicas:

kubectl scale deployment opsmate-app --replicas=4

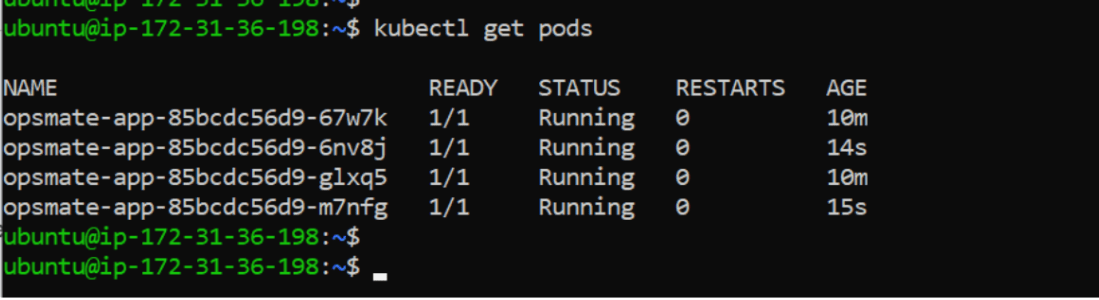

Verify:

kubectl get pods

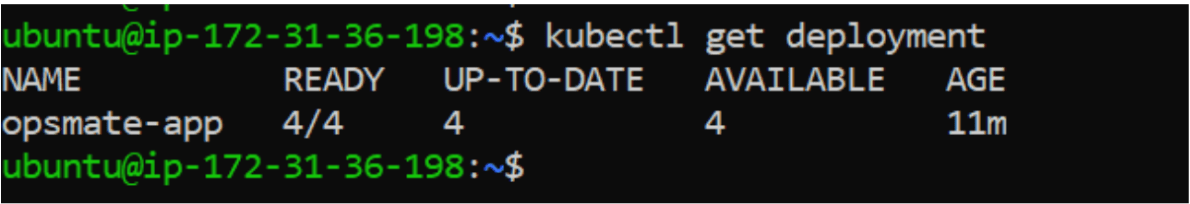

Verify deployment:

kubectl get deployment

Task 10: Validate Application Availability

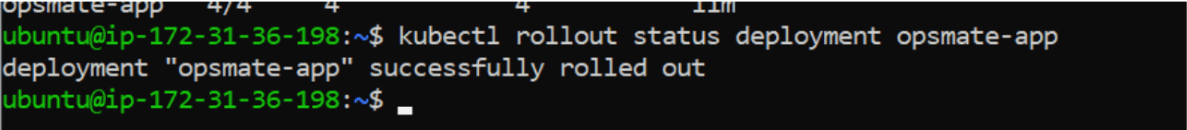

View deployment status:

kubectl rollout status deployment opsmate-app

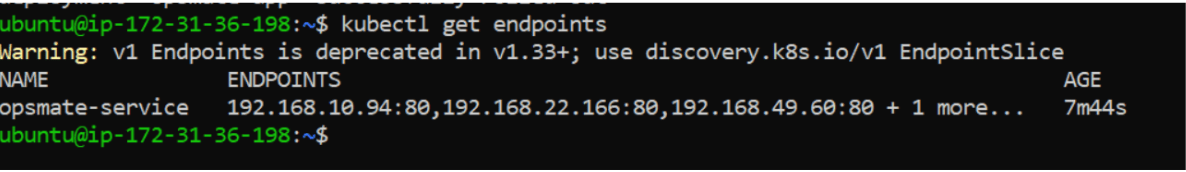

View endpoints:

kubectl get endpoints

Verify Services:

kubectl get svc

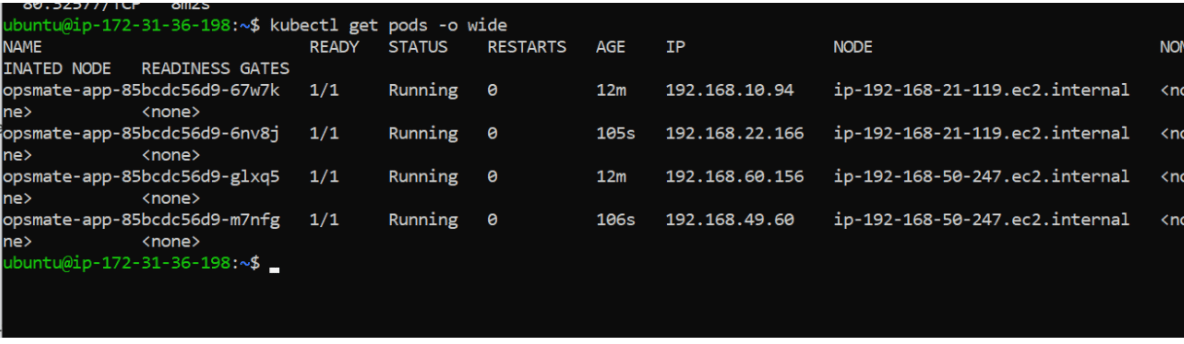

Verify Pods:

kubectl get pods -o wide

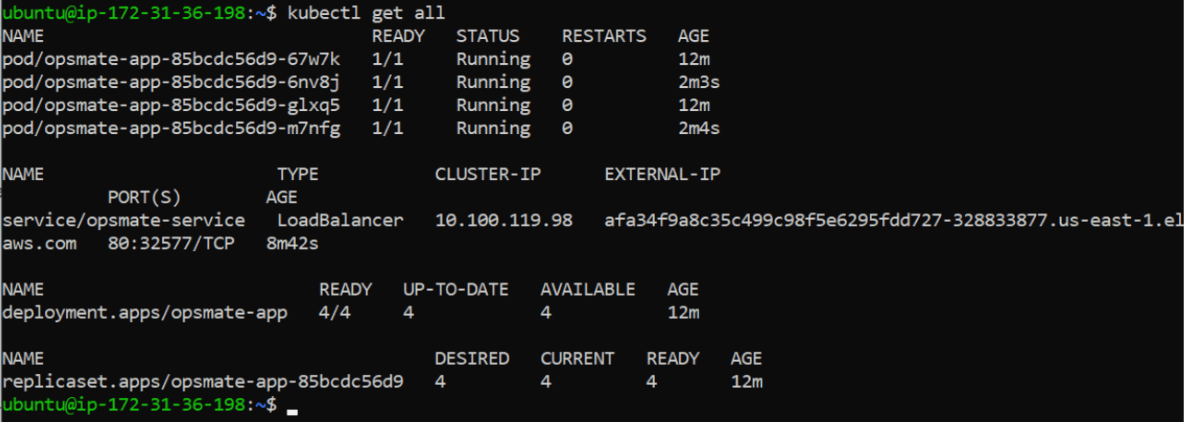

View all namespace resources:

kubectl get all

Cleanup Resources

Delete Service:

kubectl delete -f opsmate-service.yaml

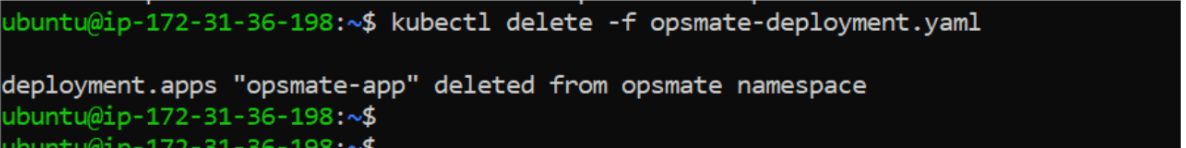

Delete Deployment:

kubectl delete -f opsmate-deployment.yaml

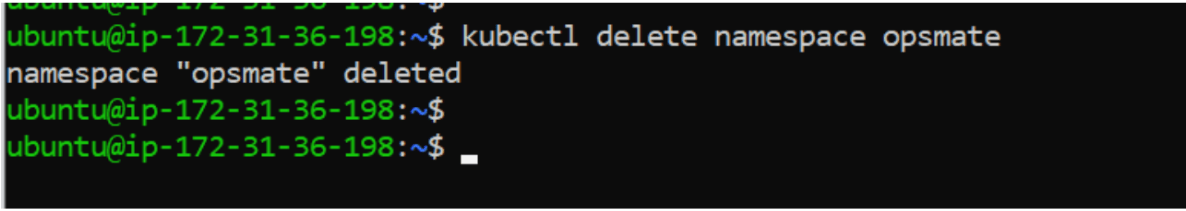

Delete Namespace:

kubectl delete namespace opsmate

Verify cleanup:

kubectl get namespaces

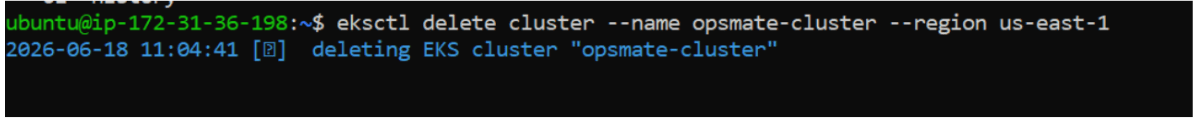

Delete the cluster

 eksctl delete cluster --name opsmate-cluster --region us-east-1

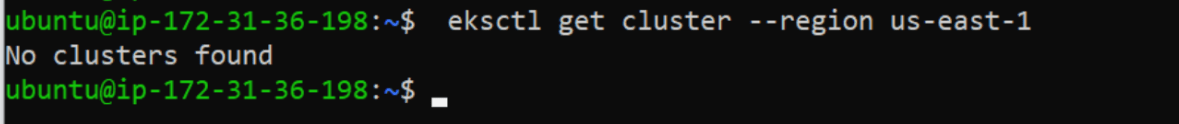

Verify the cluster

eksctl get cluster --region us-east-1



Great job!

  • Created an OpsMate namespace, deployed the application using Kubernetes Deployment, and verified Pods, Deployments, and workload organization.
  • Exposed the application using a LoadBalancer Service, accessed it through AWS Load Balancer, and scaled workloads inside the cluster.
